Ремкомплект курка распылительного RL 34 9(10)x1 шт.

Ремкомплект курка распылительного RL 34 9(10)x1 шт.

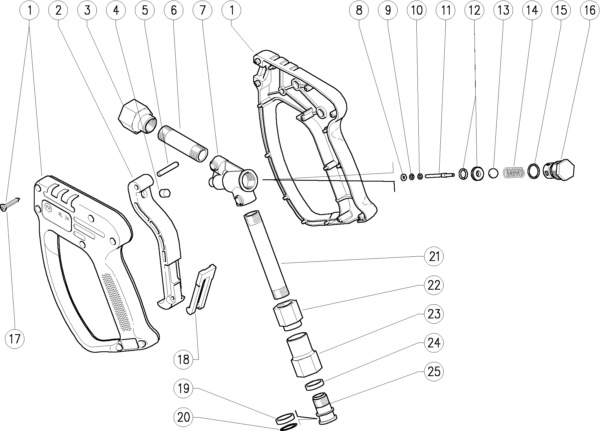

list of components and their material.

Cod. Articolo           Descrizione                                        Quantità UM

10.3060.10              O-ring, 1,78x12,42 mm Vi 70                            1,00 Un
10.3092.10              O-ring, 2x15 mm Vi 70                                  1,00 Un
10.3165.00              O-ring, 2,62x2,84 mm Vi 70                             1,00 Un
10.4018.00              Back-up ring, 3,2x7,5x1,2 mm                           1,00 Un
14.7461.00              Ball, 13/32" Sst.                                      1,00 Un
26.1074.85              Bushing, 15,5x19x4 mm PTFE                             1,00 Un
26.1075.85              Bushing, open 15,5x19x4 mm PTFE                        1,00 Un
30.2802.51              Sst.plunger D.4x3x L.43mm                              1,00 Un
30.2806.20              Seat, 9mm Sst.+O-ring                                  1,00 Un
10.3059.10             O-ring, 1,78x11,11 mm Vi 70                            1,00 Un
